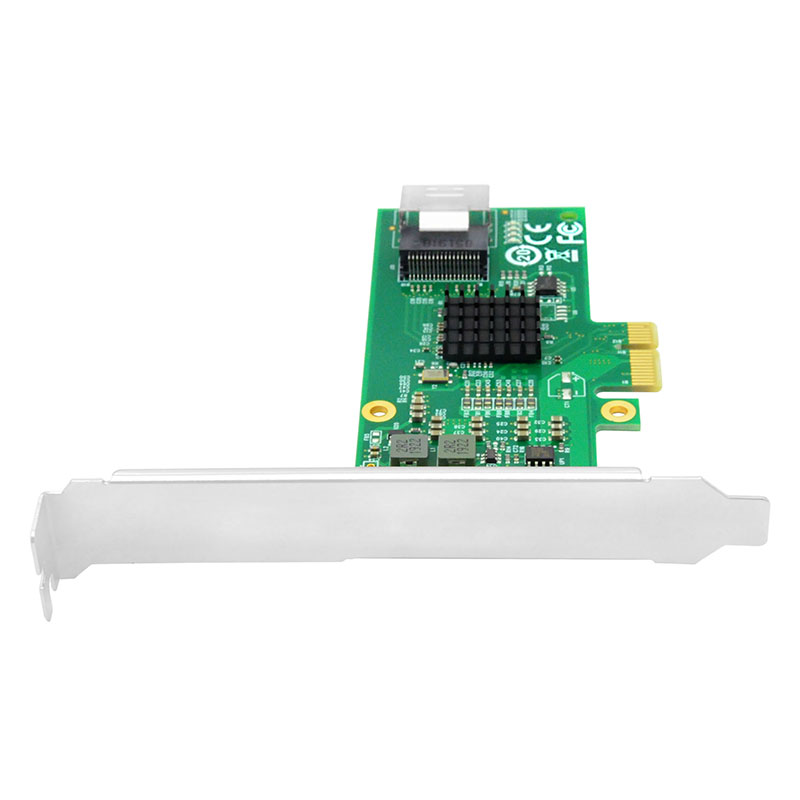

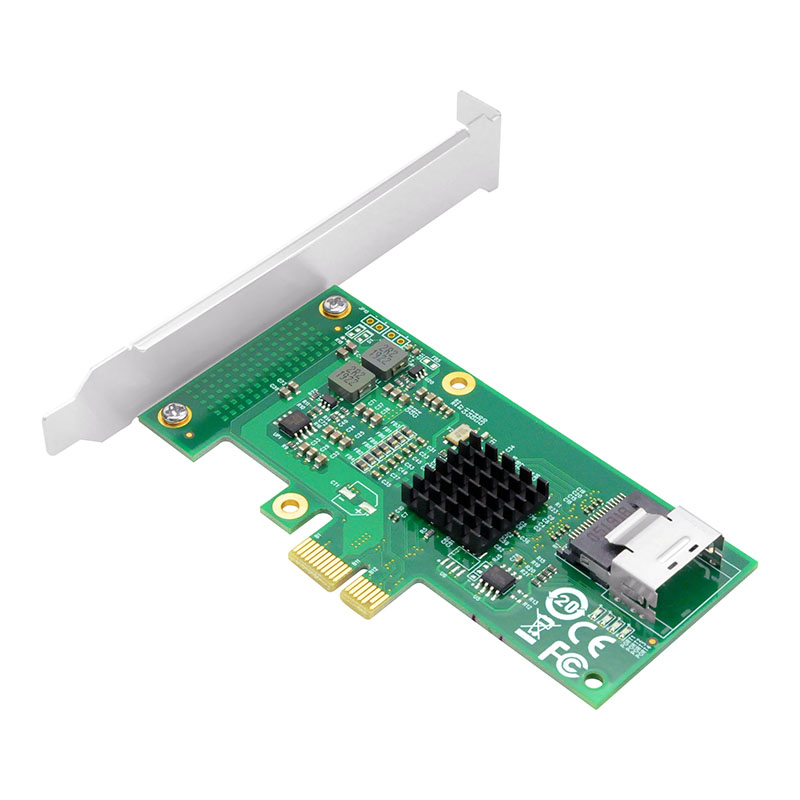

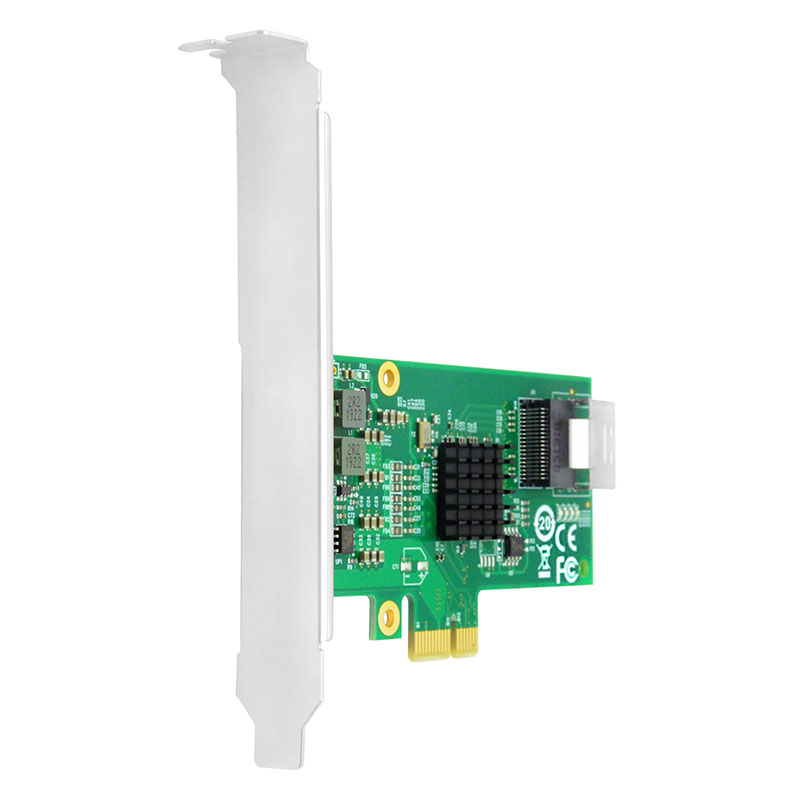

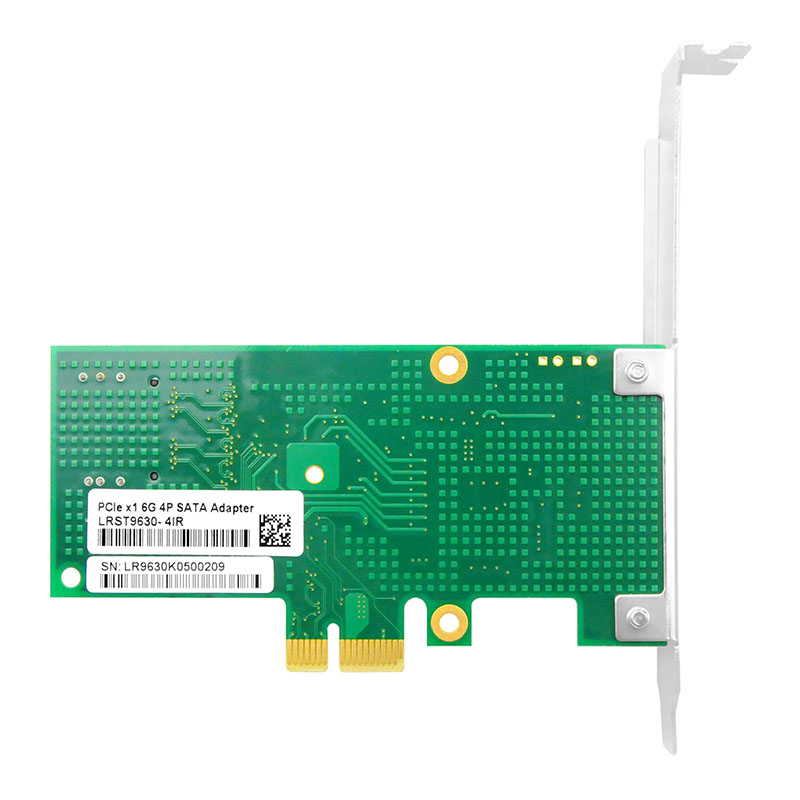

LRST9630-4IR x1 4 Port SATA III PCI-e 2.0 x1 RAID Controller Card

Product number: 4PortSATAIIIPCIe2.0x1RAIDControllerCard

Views:1015Times

Tags：

Model：LRST9630-4IR x1
Product Name：4 Port SATA III PCI-e 2.0 x1 RAID Controller Card
Chipset：Marvell 9230
Interface：1*SFF-8087
Supported Equipment：4*SATA SSD
Host Bus Type: PCIe 2.0 x1
RAID Level：RAID 0,1,10,JBOD

Overview
Parameter
Related Products

LRST9630-4IR x1 is a 6Gb/s PCIe 2.0 x1 to 4 Port SATA 3.0 RAID Controller Card which can be widely used in Applications of PC, Servers, Gaming and video editing.

PCIE Features

Compliant with PCIe 2.0 specifications.
Supports communication speeds of 2.5 Gbps and 5.0 Gbps.
Supports IDE programming interface registers for the SATA controller.
Supports AHCI programming interface registers for the SATA controller.
Supports aggressive power management.
Supports error reporting, recovery, and correction.
Supports Message Signaled Interrupt (MSI).

SATA Features

Supports hardware RAID 0, 1, and 10, JBOD.
Supports SATA HDD & SSD.
Compliant with Serial ATA Specification 3.1.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Supports programmable transmitter signal levels.
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports four SATA ports.
Supports AHCI 1.0 and IDE programming interface.
Supports Native Command Queuing (NCQ).
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states.
Supports Staggered Spin-up.
Supports AES-256.

HARDWARE
Model	LRST9630-4IR x1
Number of Device	4 internal
I/O Controller	MARVELL 88SE9230
Bus Type	PCI Express 2.0 x1
Compatible Device Types	4 SATA SSD
Interface	1* SFF-8087
RAID Level	RAID 0, 1, 10, JBOD
CONNECTOR(S)
Drive Connector	1* SFF-8087
Host Connector	PCIe 2.0 x1
ENVIRONMENTAL
Humidity	0% – 90%
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 65°C (14°F to 149°F)
PCIe supply voltage	3.3V ±9%
Power dissipation	1W
PHYSICAL CHARACTERISTICS
Dimension	116mm*69mm
Product Weight	50g
WARRANTY INFORMATION
Warranty	2 Years
PACKAGING INFORMATION
Shipping (Package)Weight	4.5oz [125 g]
WHAT'S IN THE BOX
Included in Package	1 - PCI Express to SATA 3 Expansion Card
	1 - low-profile bracket
	1 - full-profile bracket (installed)
