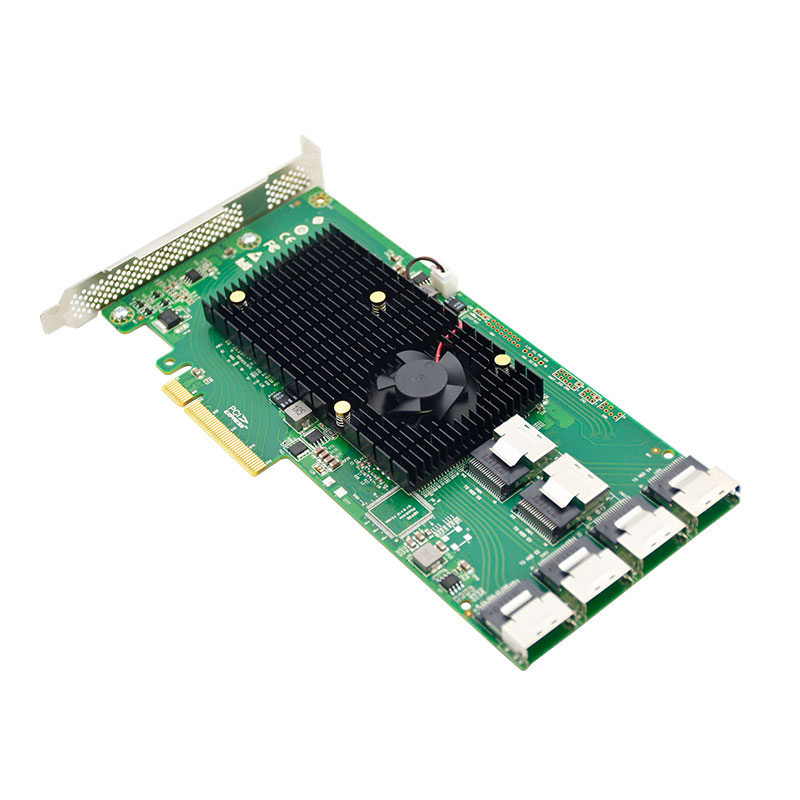

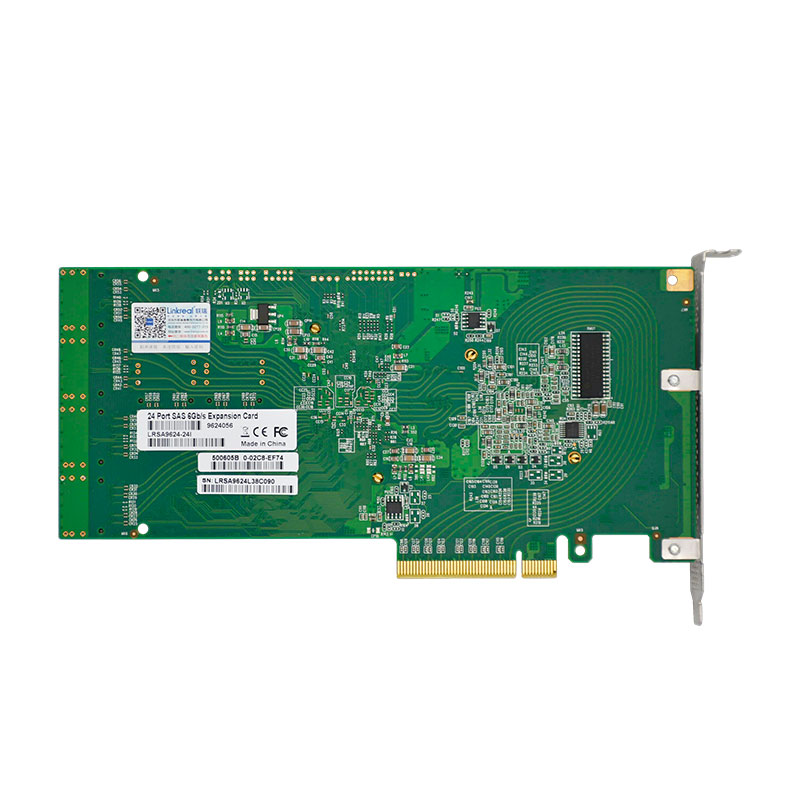

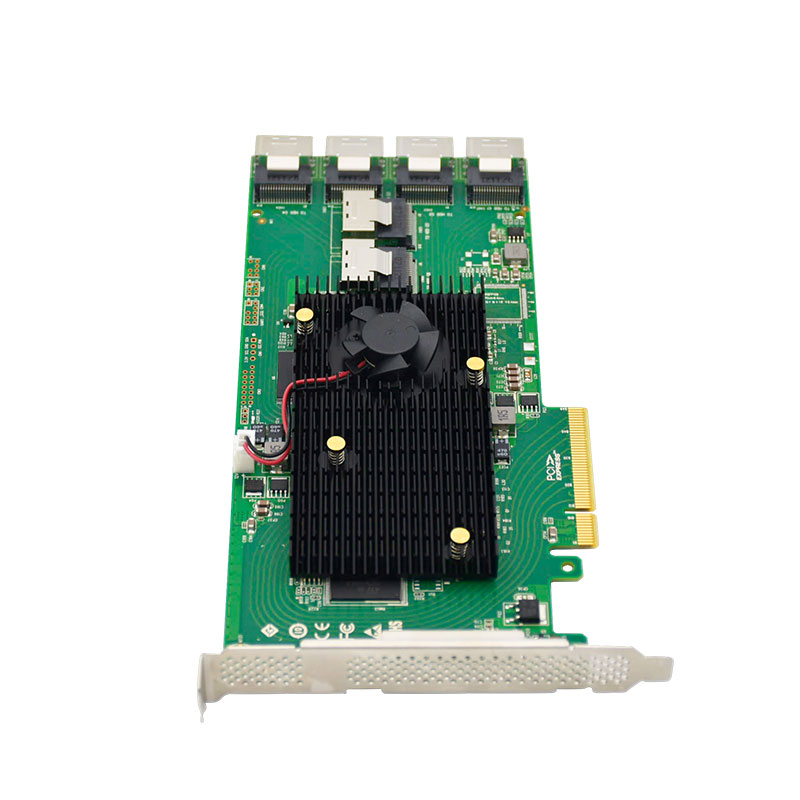

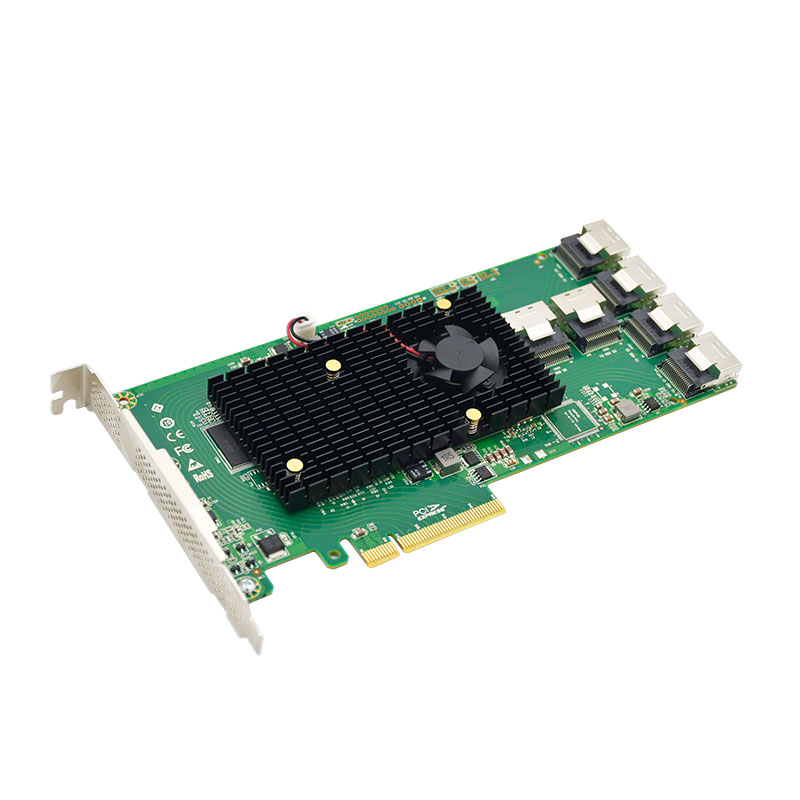

LRSA9624-24I 6Gb/s PCIe X8 to 24 Port SAS/SATA Expander Card

Product number: LRSA962424I

Views:847Times

Tags:

Product Mode:LRSA9624-24I
Product Name:PCIe x8 to 24 Port SFF-8087 6Gb/s Expansion Card
Chipset:LSI SAS 2008+SAS 2X36
Interface:6*SFF-8087
Support: 24 SAS/SATA HDD
  • Overview
  • Parameter
  • Related Products

Features:

  • Please note it's NOT a RAID Controller
  • Support connection up to 24 HDD via 6x SFF-8087 connection ports
  • Supports SAS and SATA data transfer rates of 1.5, 3, and 6Gb/s and incorporates enhanced features. The SAS expander provides large storage environments the ability to connect multiple targets and initiators through a switched device for scalability and fault tolerant pathredundancy to improve system reliability ideal for today’s data center and storage subsystems. The expander is ideal for high availability and scalable server clustering environments and front-end storage subsystems used in clusters, SAN, and NAS environments.
  • 6 and 3Gb/s SAS
  • 6.0, 3.0, and 1.5Gb/s SATA
  • based on LSI 6Gb SAS2x36 and SAS 2008 expander

HARDWARE

Model

LRSA9624-24I

MAX number of Device

24 internal

Bus Type

PCI Express

Main Chipset

SAS 2X36 +SAS 2008

Compatible Device Type

24 SAS /SATA HDD

Interface

6*SFF-8087

Host Bus Type

PCI Express x8

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

204mm x 100mm

Product Weight

190g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

9.21 oz [261g]

WHAT'S IN THE BOX

Included in Package

1 - 6Gb/s PCIe x8 to 24 Port SAS Expander Card

1 - Full-height bracket (installed)
