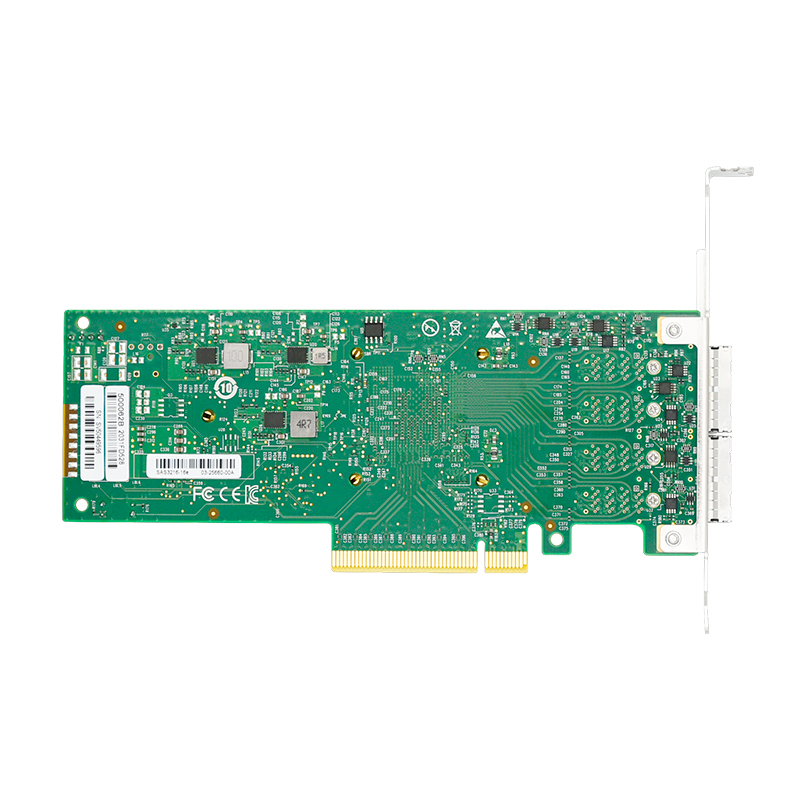

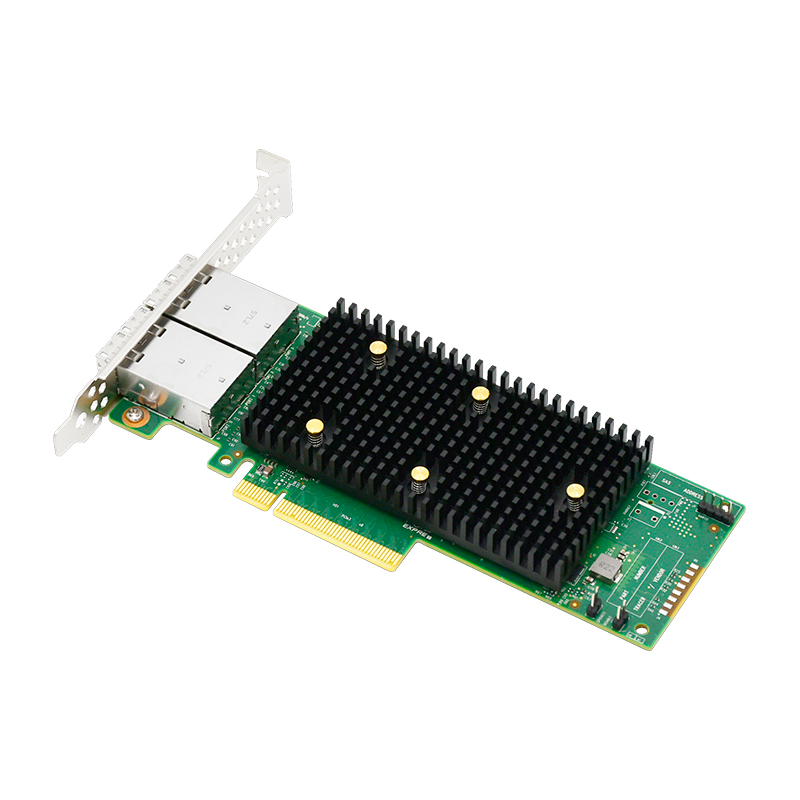

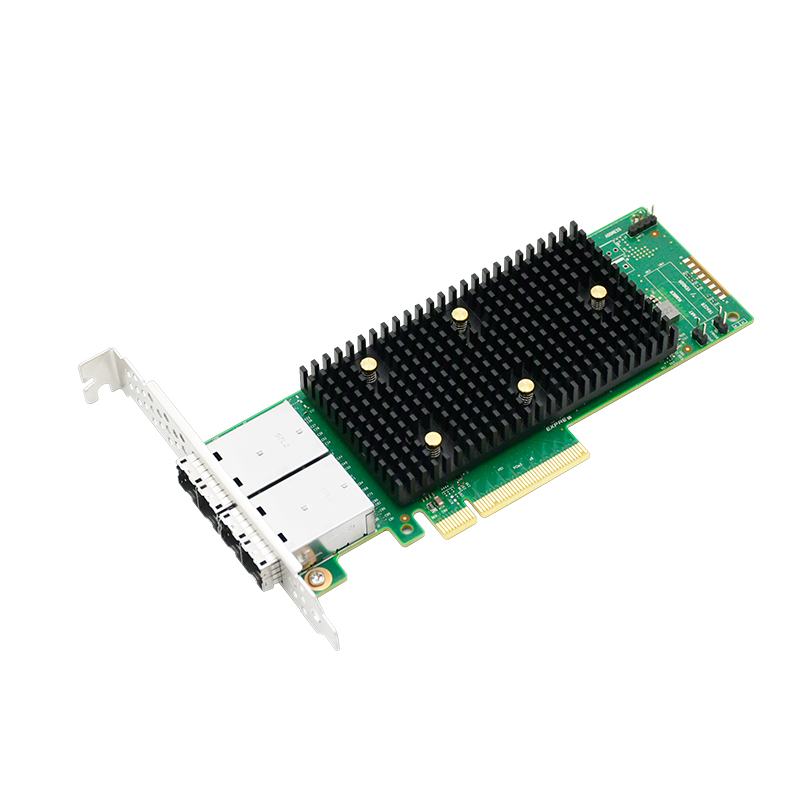

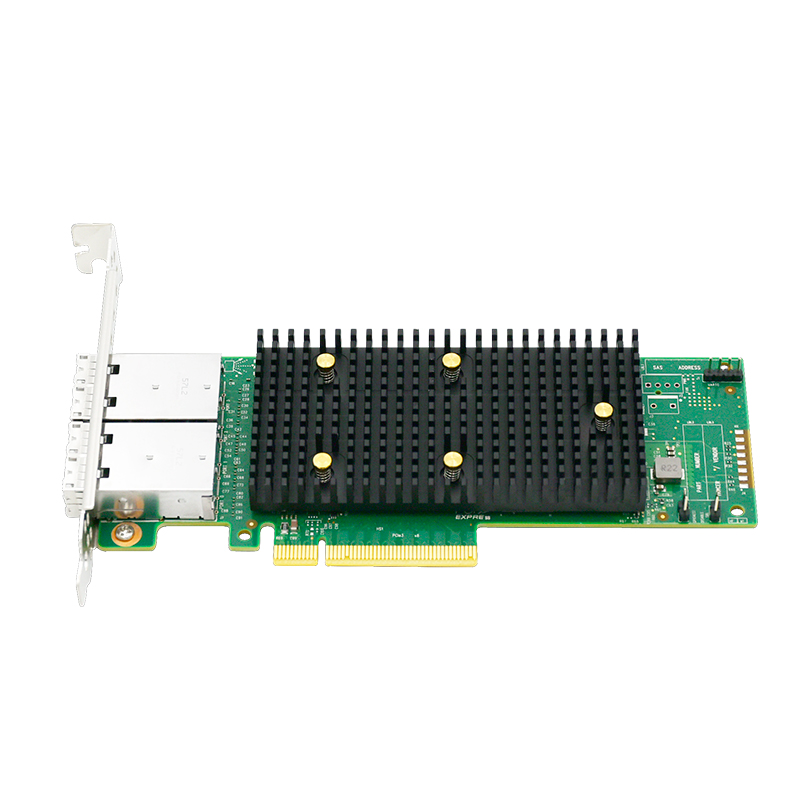

LRSA9C24-16E PCI Express to 12Gb/s SAS Host Bus Adapter

Product number: LRSA9C2416EPCIExpressto12GbsSA

Views:456Times

Tags：

Product Model：LRSA9C24-16E
Product Name：PCIe x8 to 16 Port SAS/SATA3 Expansion Card
Main Chipset：SAS 3216
Interface：4*SFF-8644
Support: 16 SAS/SATA
Height：Support 2U、3U

Overview
Parameter
Related Products

The 12Gb/s SAS HBA provides sixteen lanes of 12Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance. The low-profile design of the SAS HBA includes a full-height mounting bracket and a low-profile mounting bracket that create a universal fit for any server. This HBA is developed on the Fusion-MPT-based SAS 3216 controller that integrates the latest enhancements in PCIe 3.0 technology and 12Gb/s SAS technology.

Features:

Implements one SAS 3216 sixteen-port 12Gb/s SAS to PCIe 3.0 controller

Supports sixteen external 12Gb/s SATA+SAS ports

Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s

Provides sixteen x4 external mini-SAS HD connectors (SFF-8644)

Supports up to 1024 SATA or SAS end devices

Offered with a full-height bracket and a and a low-profile vented bracket

Operating System Support

Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, and Debian.

HARDWARE
Model	LRSA9C24-16E
MAX number of Device	16 External
Bus Type	PCI Express
Main Chipset	SAS 3216
Compatible Device Type	16 SAS /SATA HDD
Interface	4*SFF-8644
Host Bus Type	PCI Express x8
ENVIRONMENTAL
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Dimension	167.50mm x 68.60mm
Product Weight	257g
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - 12Gb/s PCIe x8 to 16Port SAS Expansion Card
Included in Package	1 - Full-height bracket (installed)
