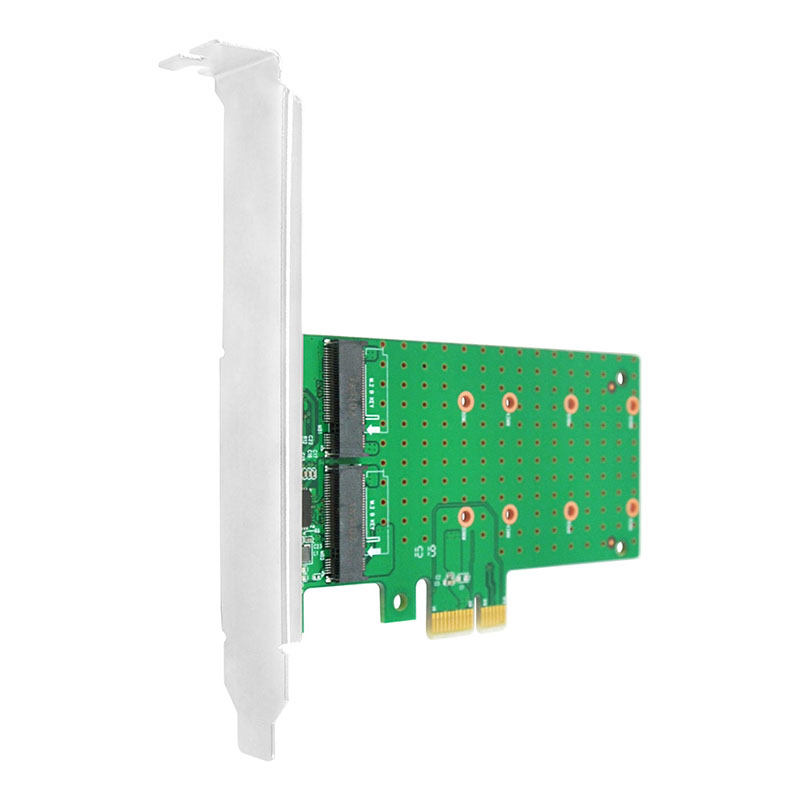

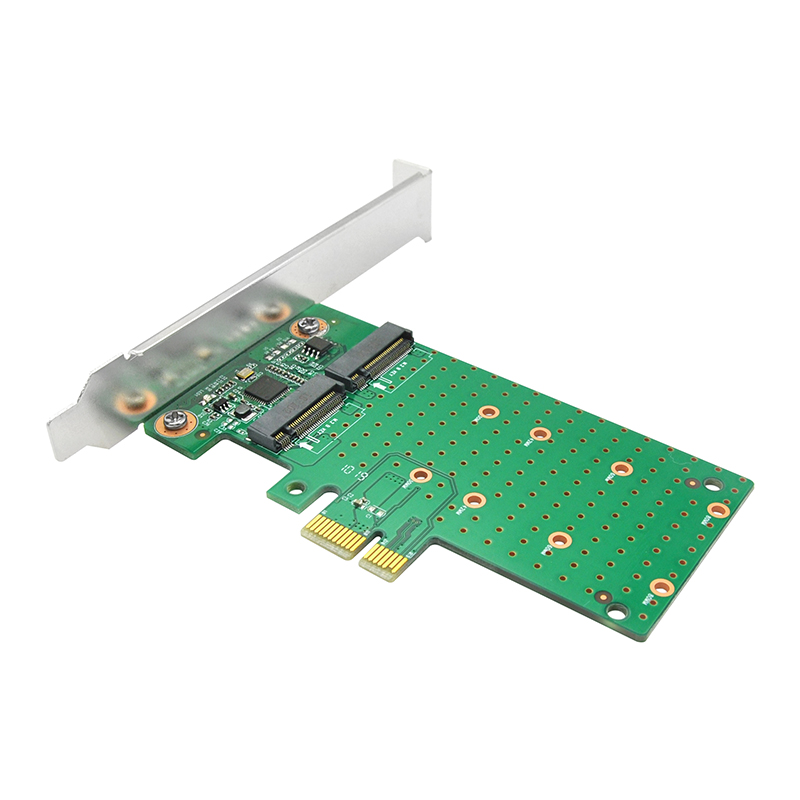

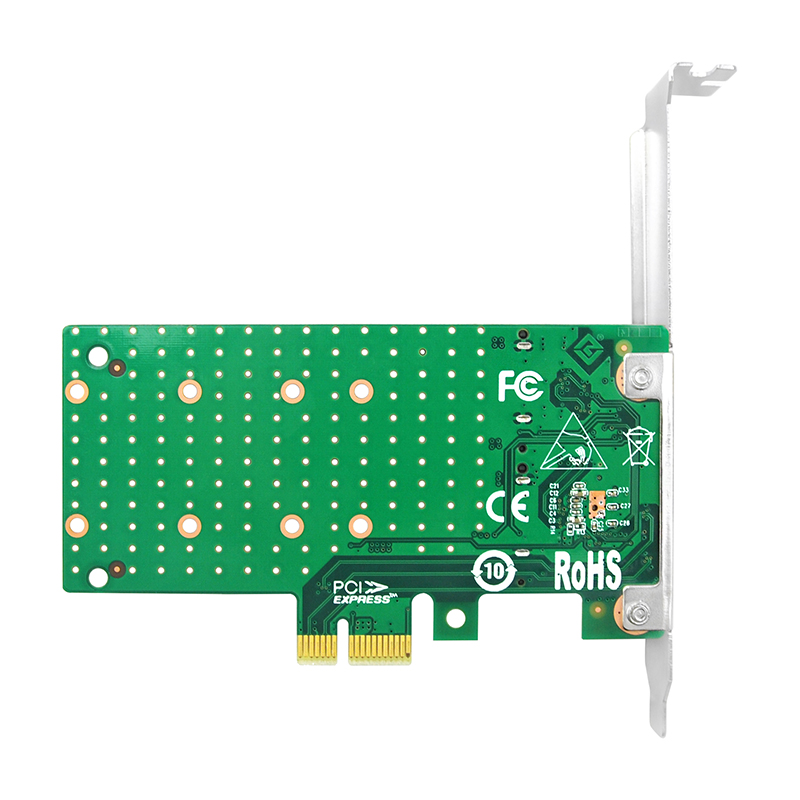

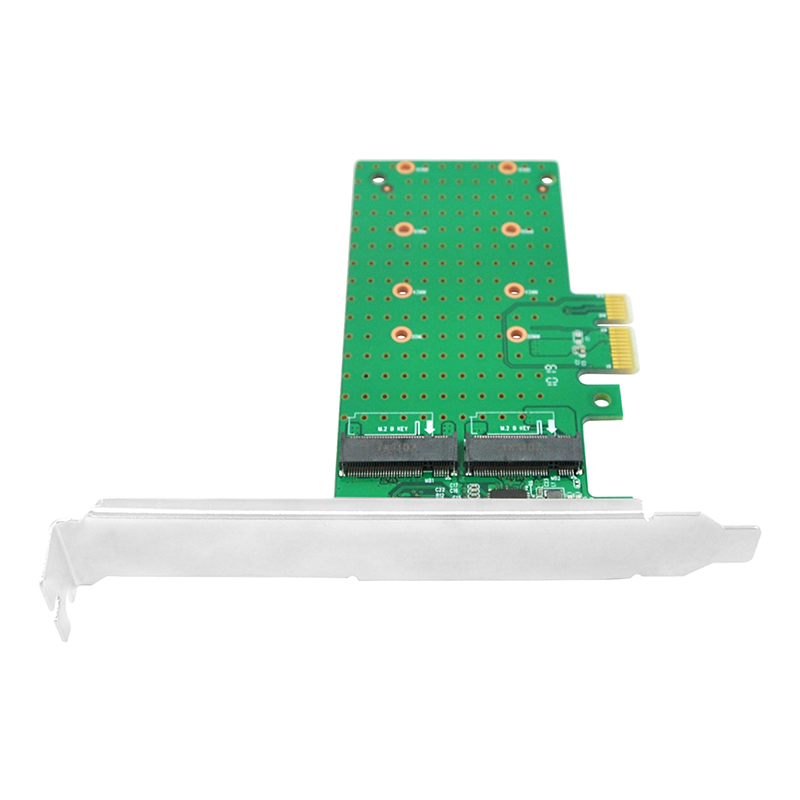

LRST9661-2IR 6Gb PCIe x1 to 2-Port M.2 RAID Card

Product number: LRST96612IR

Views:1568Times

Tags:

Product Model:LRST9661-2IR
Product Name:Dual PCIe x1 to M.2 SATA RAID Controller Card
Chipset:ASMedia 1061R
Interface Type: 2*M.2 Connectors
Support Equipment: 2*M.2 SSD
Host Bus Type: PCIe 2.0 x1
RAID Level:RAID 0,1
  • Overview
  • Parameter
  • Related Products

Product Description

LRST9661-2IR is dual SATA III (6 Gbps) to PCI Express RAID Card. LRST9661-2IR is Serial ATA Advantage HCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock With Independent Spread) function, complies with Serial ATA Revision 3.0 Specification.

Characteristics

• Compliant with Serial ATA Specification 3.0.

• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

• Single virtual channel

• SSC support

• Serial ATA AHCI Spec. Rev.1.3

• Supports two M.2 SATA ports.

• ECRC and Advanced Error Reporting capability

• Support Native Command Queuing (NCQ).

• Support Port Multiplier

• Support Gen 1m and 2m SATA PHY

• RAID Level: RAID 0,1


HARDWARE

Model

LRST9661-2IR

Number of Device

2 Internal

I/O Controller

ASMedia1061R

Bus Type

PCI Express 2.0 x1

Compatible Device Type

2 M.2 SATA SSDs

Interface

2 M.2 B Key

RAID Level

RAID 0,1

CONNECTOR(S)

Device Connector

2*M.2 SATA Connectors

Host Connector

PCIe 2.0 x1

ENVIRONMENTAL

Humidity

0% – 90%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

PHYSICAL CHARACTERISTICS

Dimension

107mm*60mm

Product Weight

46g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

3.0oz [86 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express to M.2 SATA adapter

1 - full-height bracket (installed)

1 - low-profile bracket

2 - screws and nuts
