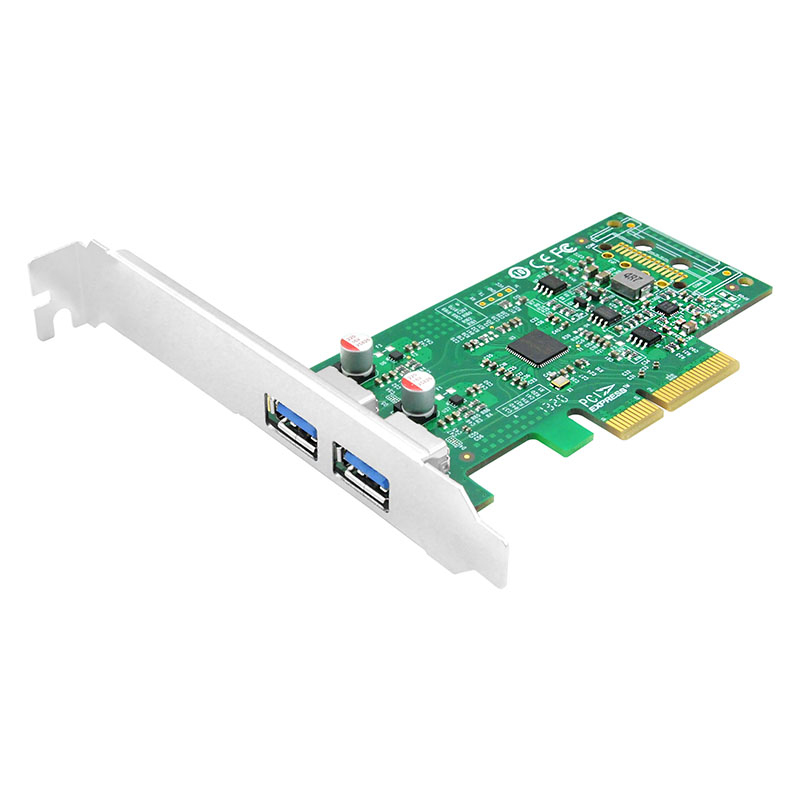

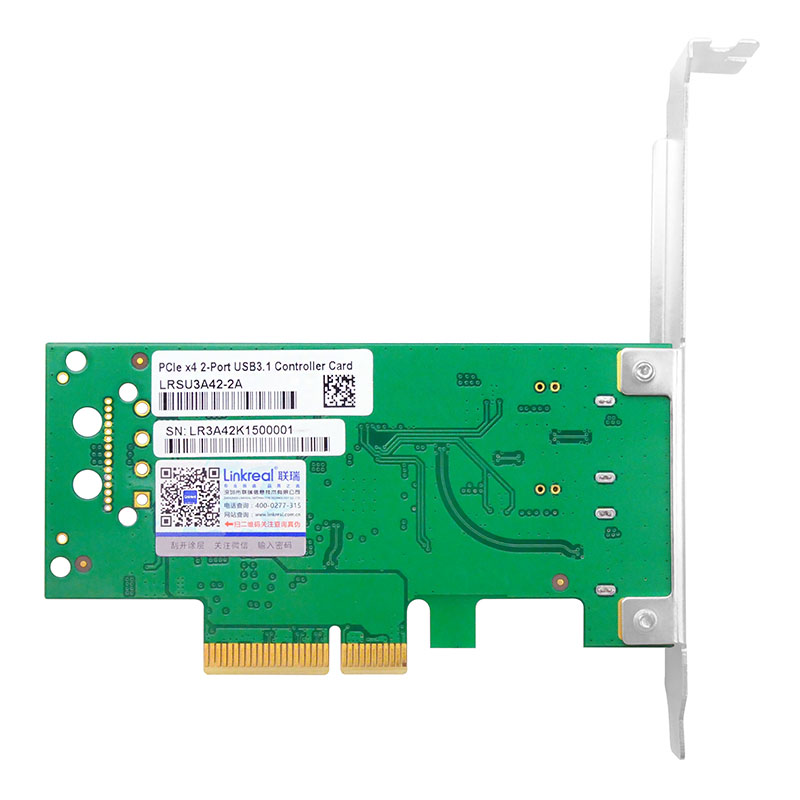

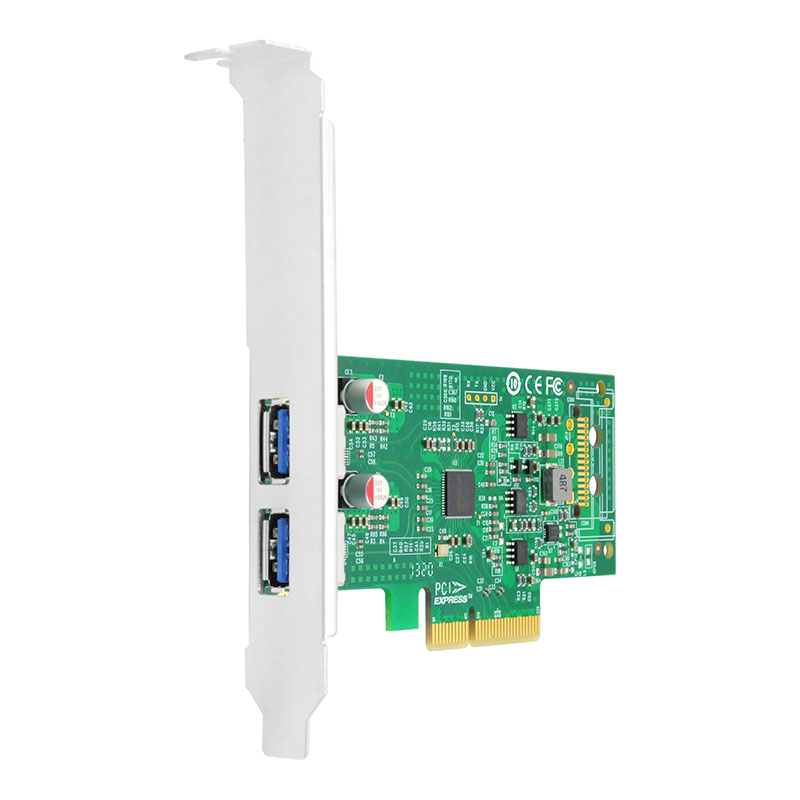

LRSU3A42-2A PCIe x4 to 2-Port USB3.1 Type A Host Adapter

Product number: LRSU3A422A

Views:1154Times

Tags:

Model:LRSU3A42-2A
Name:2 Port 10Gb/s PCIe x4 USB 3.1 Adapter
Chipset:ASMedia 3142
Interface Type:2*USB3.1 Type-A
Host Bus Type:PCIe 3.0 x4
Transfer Speed: 10Gb/s
  • Overview
  • Parameter
  • Related Products

• ASM3142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1.

• Up to 10Gbps bandwidth performance.

• Backward compatible with USB2.0 function and device.

• PCIe X4 interface,compatible with slot x8,x16.

• 2 standard USB3.1 type A interfaces, support 10G/5G/480M USB data transfer rate.

• Compliant with USB 3.1 Gen2.

• Support multiple USB devices operating at the same time.

• Each USB port provides the maximum output: +5VDC/900mA.

• Support Wake On LAN of USB keyboard or mouse devices.

• Input power: 15-pin SATA CD-ROM power connection.

• Support Control, Bulk, Stream, Interrupt, Isochronous.

• Support USB device hot-plugging.

LRSU3A42-2A  Adapter technical specifications

Model

LRSU3A42-2A

I/O Controller

ASM3142

Drive Connector

USB Type-A

PCB size

Skinny short external card: 106mm x 56mm

Weight

60g

PCIe interface card type

x4 channel, and compatible x8,x16;

PCI Express 2.0, PCI Express2.1

SATA supply voltage

12V±8%  5V±9%

Power dissipation

1.5W

Bracket

Metallic support: height/skinny(2U/3U)

Working Humidity

5% – 95%

Working Temperature

0°C – 60°C (32°F - 140°F)

Storage Temperature

-20°C–70°C

Connector

USB3.1

System Requirements

With an available PCI Express x4 slot
