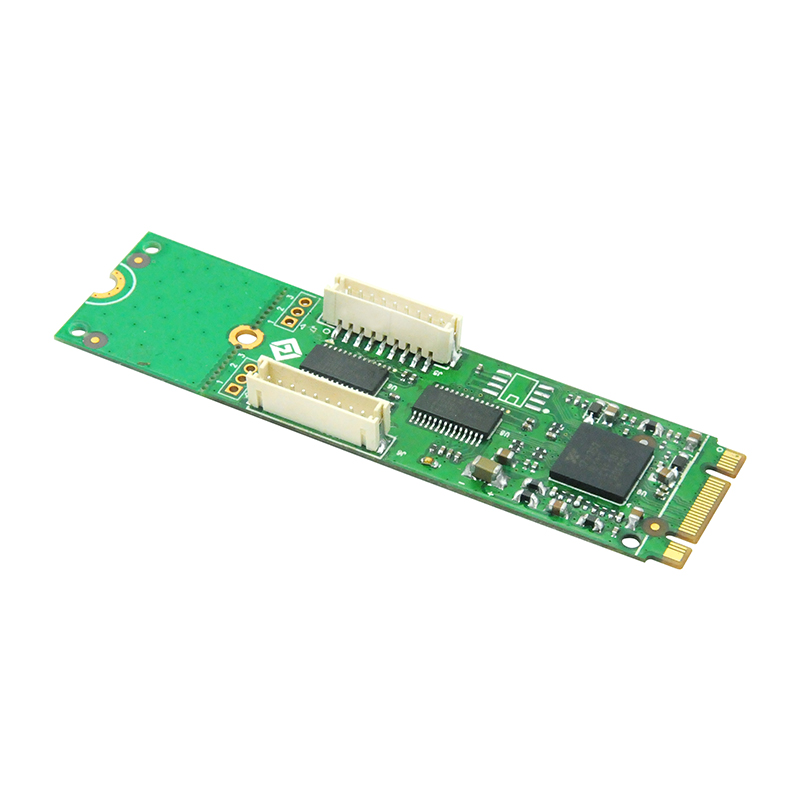

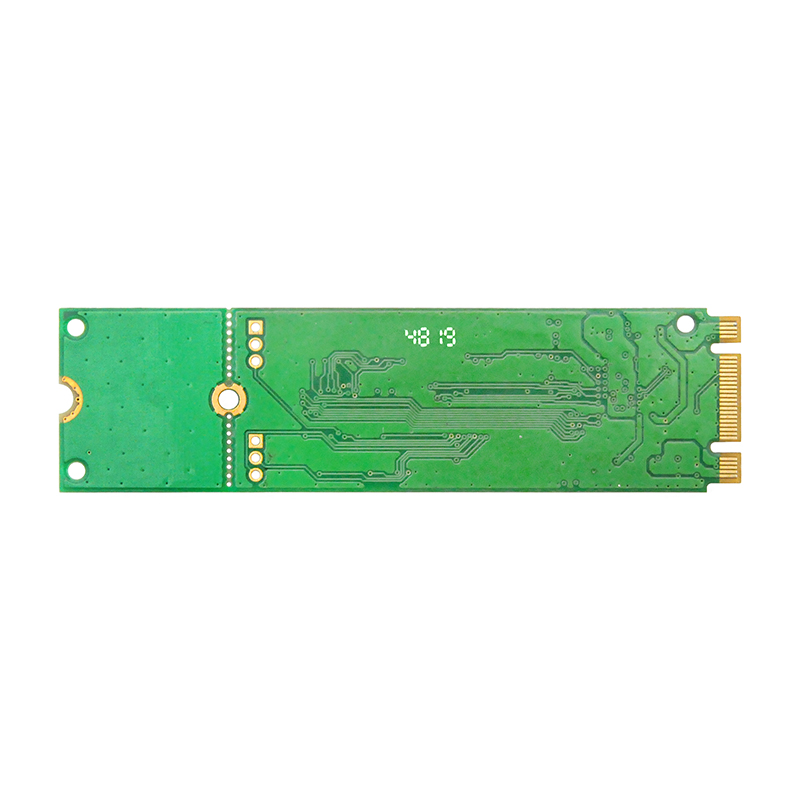

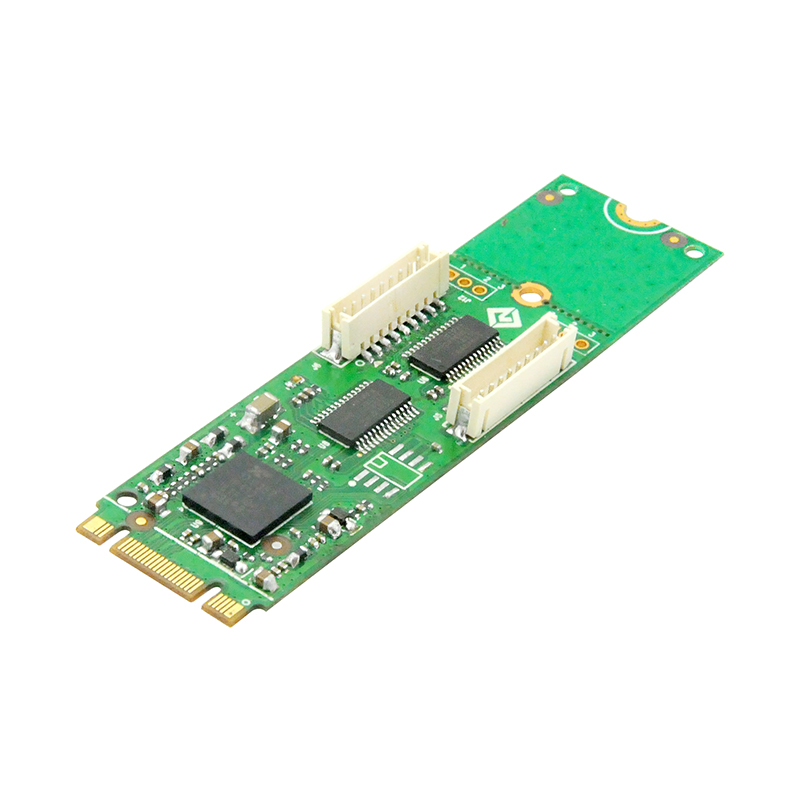

LRUA5252 2-Port M.2 to RS-232 Serial Card

Product number: LRUA5252

Views:911Times

Tags:LRUA5252

Product Model:LRUA5252
Description:M.2 to 2-Port RS-232 Serial Card
Connector:2*RS-232 connector
Cable:DB9 9PIN Flat Data Cable
Support:2*RS-232 connector
Host Bus:PCIe 2.0 x1
  • Overview
  • Parameter
  • Related Products

Product LRUA5252 expands 2 RS-232 Serial ports(DB9 Pin) through M.2 slot. It can connect 2 RS-232 Serial devices at the same time to provide modulation and control signals so to ensure the compatibility of peripheral equipments. It provides cost-effective, high speed and stable solutions to customers.

Spec:

Support PCIe2.0 Gen 1

Adopt M.2 B Key+M Key connector, small in size with excellent transmission performance

2 standard RS232 serial ports, each can reach to 921.6Kbps

Multi-port serial devices communication through DB9 Pin cables

256 Byte of TX and RX FIFO, On-board hardwares, softwares flow control and burst datagram

Support Windows, XP, Vista, Linux and so on


Application:

Apply in POS Systems, Serial Printer, terminals and other serial devices to provides cost-effective, high speed and stable solutions to customers.

Product Model

LRSU5252

I/O Controller

XR17V352

Connector

2*BD9PIN RS-232 connector

Host Bus Type

PCIe 2.0x 1  M.2 (B+M) Key

Power Supply

3.3V

Humidity

15%~ 90%

Operating Temperature

5°C - 50°C (-41°F - 122°F)

Storage Temperature

-25°C ~70°C (-13°F ~ 158°F)

Dimension

22mmX80mm

Weight

5.3g

Item List

M.2 to 2-Port RS-232 Serial Card
