Shenzhen Lianrui Information Technology Co., Ltd.

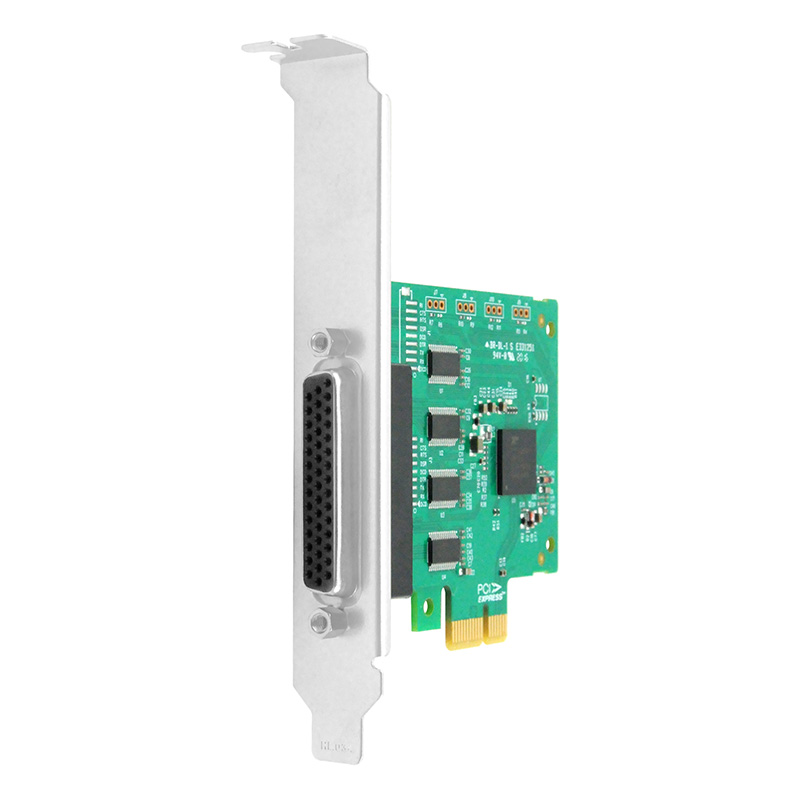

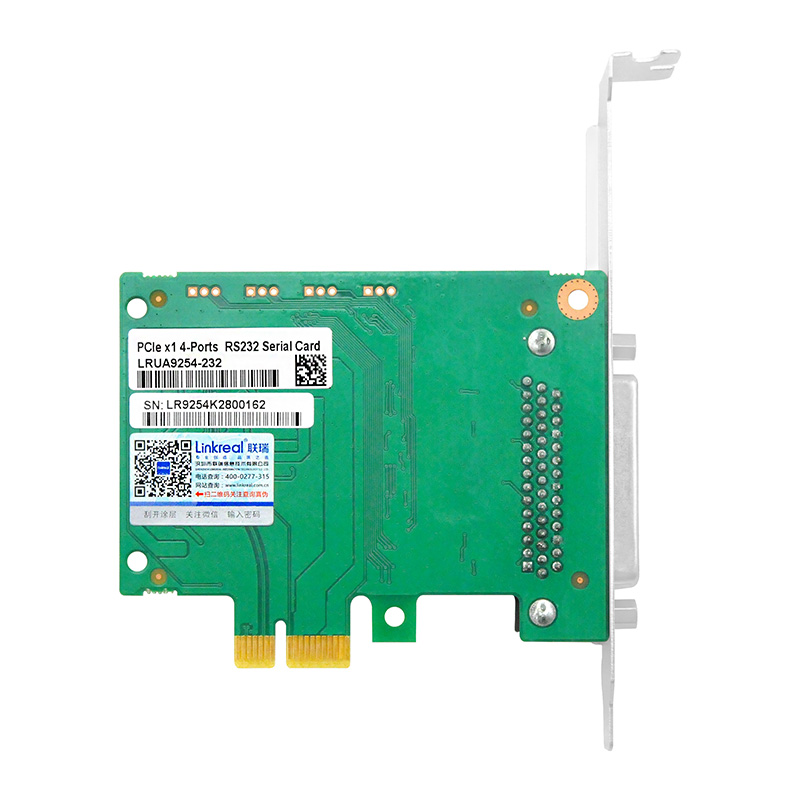

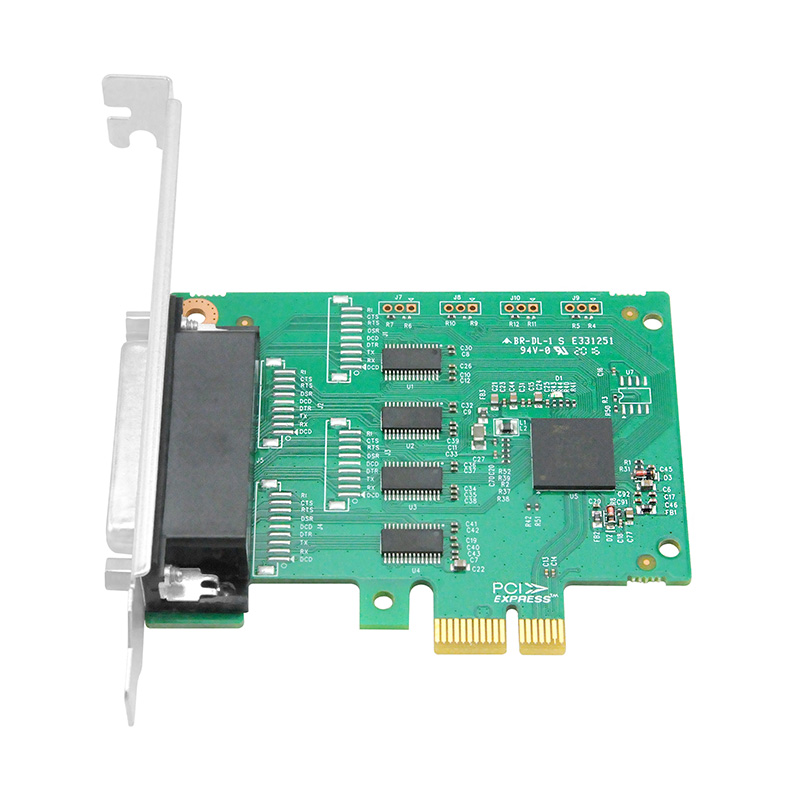

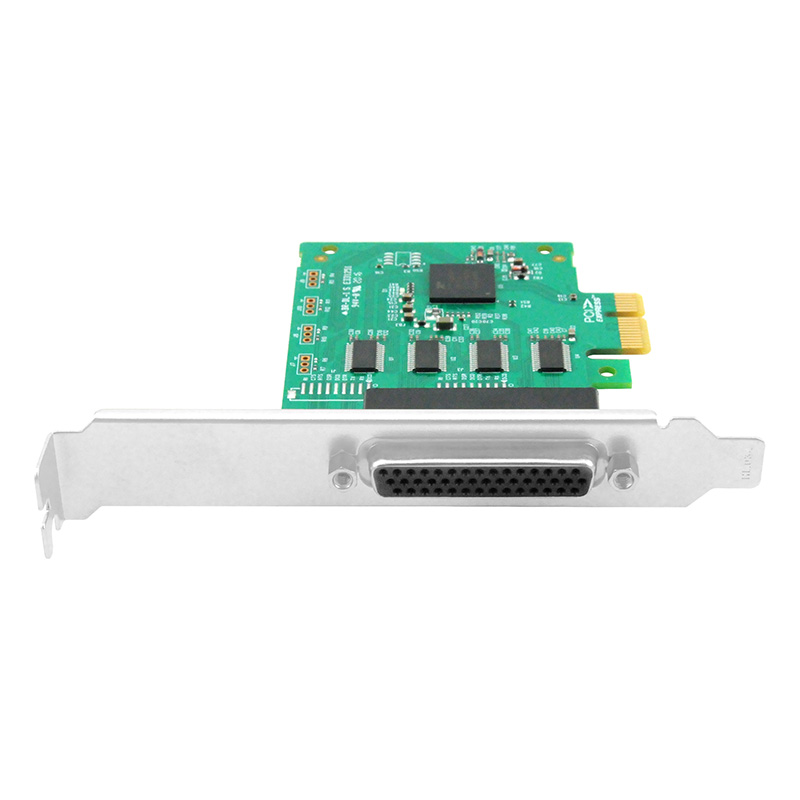

LRUA9254-232 4 Port RS232 PCI Express Serial Card

Product number: LRUA9254232PCIex14PortRS232Ser

Views:1007Times

Tags：

Model: LRUA9254-232
Product Name: PCIe x1 to 4-Port RS232 Serial Switch Card
Interface Type: 1*44Pin VHDCI
Cable Support: 44Pin VHDCI to 4 DB9
Device Support: 4*RS232 connector
Host Bus Type: PCIe 2.0 x1

Overview
Parameter
Related Products

This 4 Port RS232 PCIe serial card lets you add 4 RS232 serial ports to any PC using a single PCI Express expansion slot, It supports complete Modulator Control Signal, and is compatible with all kinds of serial peripheral to fit in different PCIe slots.

The card only needs 3.3V power supply which fits in mainframes of any dimensions.

1. Compatible with PCIe 1.1

2. 128Byte FIFO and chipset H/W,S/W flow control

3. Support RS232/422/485 cables

4. Support low-profile/half-height bracket, suitable for miniature computers.

5. Support many other operating systems such as Windows,Linux etc.

6. Internal LED Indicators and software management is convenient for later maintenance.

LRUA9254-232 Technical Spec
Model	LRUA9254-232
Controller	16C550C compatible
Host Bus	PCI Express 1.0
Serial Port	RS-232
FIFO	128 bytes
Port	4
Connector	DB 44
Bandwidth	50 bps to 921.6 kbps
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Parity Check	None, Even, Odd, Space, Mark
Flow control	None, RTS/CTS, XON/XOFF
Power Supply	1.55 A @ 3.3 VDC
Operating Temperature	0 - 55°C (32°F - 131°F)
Storage Temperature	-20 - 85°C (-4°F - 185°F)
Humidity	15% - 95%
Dimension	87mm x65mm
Weight	62.30g
Warranty	2 Years
Included in Package	1- PCI Express to 4 Port RS232 Serial Card
	1- Low Profile Bracket
	1- Full Height Bracket(installed)
