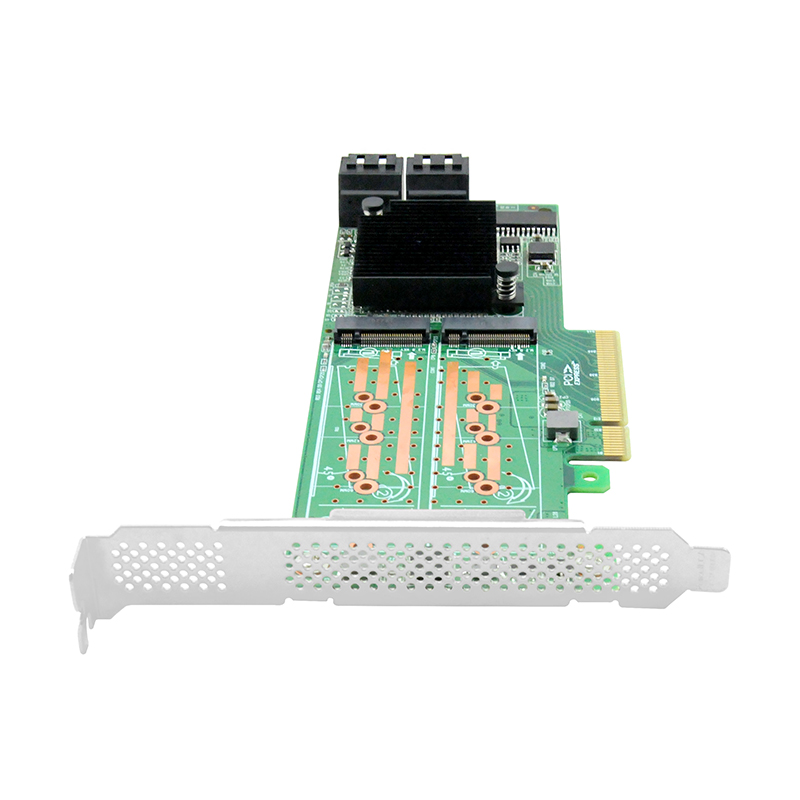

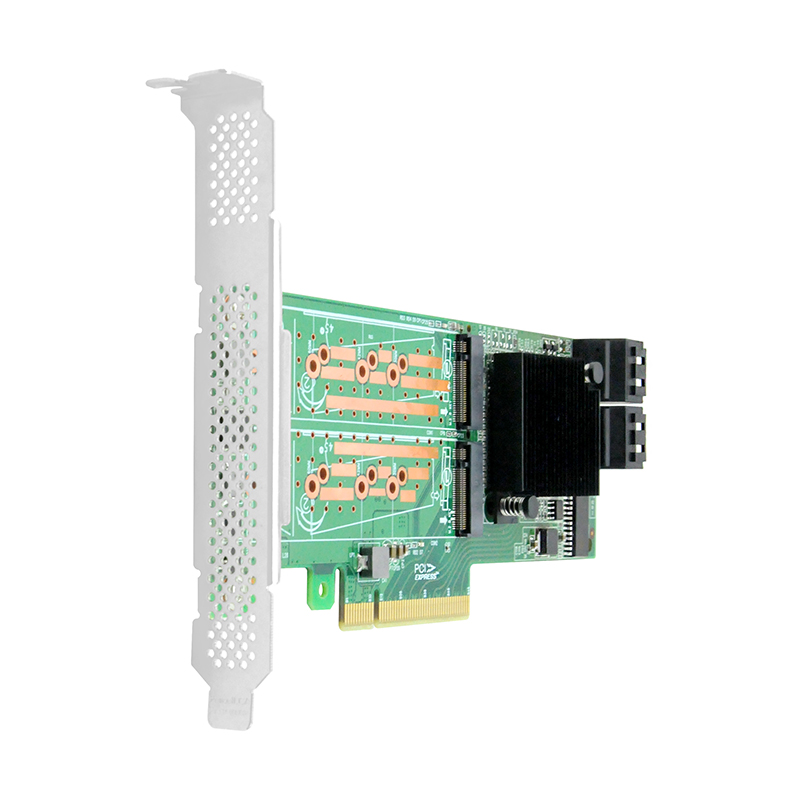

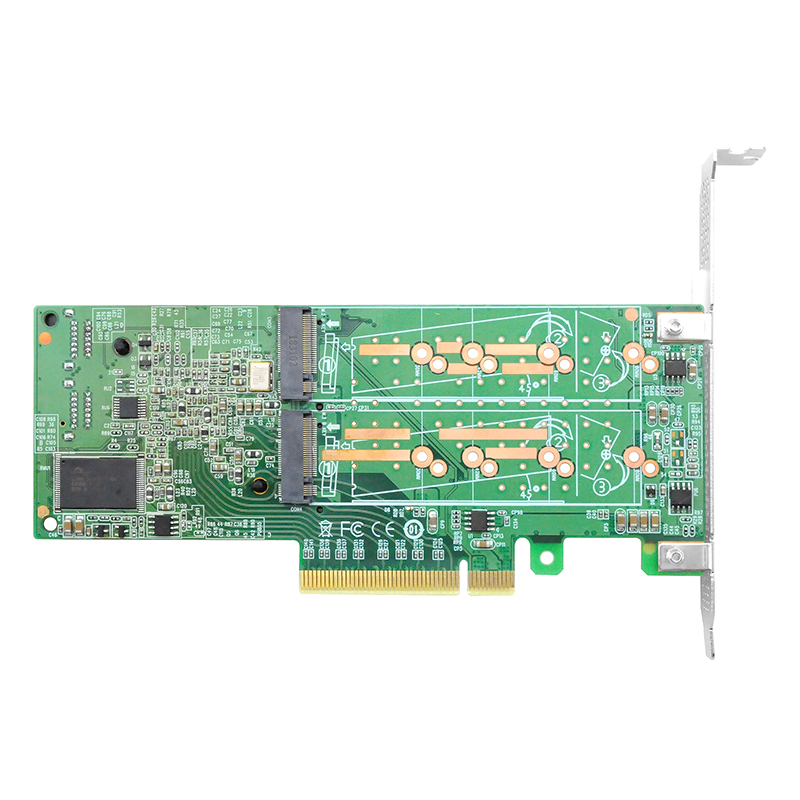

LRST9608-4M4S PCIe 2.0 x8 to 8-Port M.2 SATA 3.0 RAID Controller Card

Product number: PCIe2.0x8to8PortM.2SATA3.0RAID

Views:3184Times

Tags:

Product Model:LRST9608-4M4S
Product Name:8 Port PCIe 2.0 x8 to SATA SSD Adapter
Chipset:LSI SAS2008
Interface Type:4*SATA&4*M.2 Connectors
Support Equipment:8*SATA SSD
Host Bus Type:PCIe 2.0 x 8
  • Overview
  • Parameter
  • Related Products

Description

LRST9608-4M4S is a new product which developed on the basis of the chip scheme LSI SAS2008, which can provide high performance for SSD and HHD of different kinds of servers. It is based on the LSI I/O controller that highly integrates the latest enhancements in PCIe and SAS tech with RAID functions. This adapter has 4 M.2 B-Key connectors and 4 SATA ports for SATA devices, which provides data transfer of 6.0Gbps, 3.0Gbps, and1.5Gbps.

Features


• 8 internal SATA ports

• SAS 2008 6Gb/s SATA controller

Supports 4*M.2 &4*7Pin SATA connectors.

• Low-profile&High-profile brackets to be equipped with

• Support RAID 0, 1 and 10

Supports communication speeds of 6.0Gbps, 3.0Gbps, and1.5Gbps.

Compatible with SATA 6G, 3G and 1.5G hard disk drives.

Host Interface

PCIe x8 channel, Compatible with PCIe x16 slot

Skinny version adapter card(support 2U,3U metal case)


Operating System Support

Operating System:

       Windows Server 2003 32-bit(64-bit)

       Windows Vista 32-bit(64-bit)

       Windows 7 32-bit(64-bit)

       Windows 8 32-bit(64-bit)

       Windows Server 2008 32-bit(64-bit)

       Windows Server 2008 R2 32-bit(64-bit)

       Linux 2.4 series kernel and 2.6.x and 3.x driver)



HARDWARE

Model

LRST9608-4M4S x8

I/O Controller

LSI SAS 2008

Bus Type

PCI Express 2.0

Compatible Device Type

8 SATA SSDs/HHDs

Interface

4*M.2&4*SATA

RAID Level

RAID 0,1,10

CONNECTOR(S)

Device Connector

4*M.2 & 4*SATA 7Pin

Host Bus

PCIe x8

ENVIRONMENTAL

Humidity

0% – 90%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

PHYSICAL CHARACTERISTICS

Dimension

161mm*68mm

Product Weight

83g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

6.4oz [184 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express to M.2 SATA RAID Controller Adapter

1 - low-profile bracket

1 - full-height bracket (installed)

4 - screw&nut for M.2 SSD
